DS718+

Trang chủ »Ổ cứng mạng Synology DiskStation DS718+
Ổ cứng mạng Synology DiskStation DS718+ http://thietbiluutru.com.vn

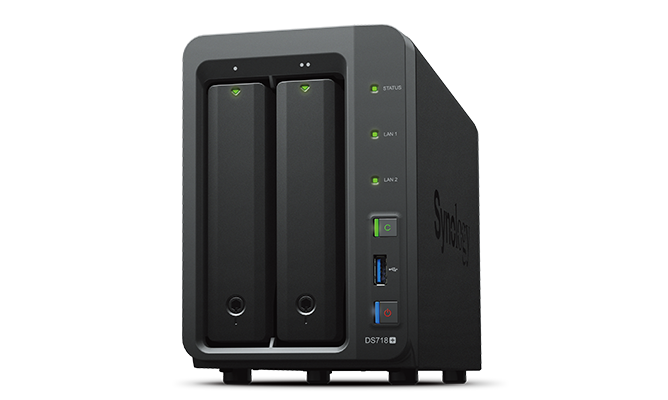

Ổ cứng mạng Synology DiskStation DS718+



Model:DS718+
Tình trạng: Đặt hàng nhanh: 0983 280 482 (Ms.Nguyệt)

1 nhận xét từ khách hàng  |  Gửi nhận xét

13.100.000
- CPU Intel Celeron J3455 Quad Core 1.5 GHz (turbo to 2.3 GHz) 64-bit,
- 2GB RAM DDR3L (up to 6GB)
- Loại ổ cứng tương thích : Ổ cứng 3,5 "SATA ,Ổ cứng SATA HDD và SSD 2.5"
- Hỗ trợ tổng dung lượng tối đa : 24 TB (12 TB ổ x 2) (Dung lượng có thể khác nhau tùy thuộc vào loại RAID)
-Tông dung lượng tối đa mở rộng :84 TB (24 TB + 12 TB ổ x 5) (Dung lượng có thể khác nhau tùy thuộc vào loại RAID)
- Cổng kết nối: x2 LAN RJ-45 1GbE,x2 Cổng USB 3.0, x1 Cổng ESATA

Bảo hành: 36 tháng



SP cùng mức giá

Ổ cứng mạng Synology DiskStation DS718+

Thông tin chi tiết :

Khả năng mở rộng linh hoạt để đáp ứng nhu cầu tăng trưởng

 Ổ cứng mạng Synology DiskStation DS718+ Với bộ xử lý 4 nhân và công cụ mã hóa phần cứng AES-NI, DS718 + cung cấp tốc độ truyền tệp tuyệt vời. Với khả năng mở rộng mở rộng lên đến 7 ổ cứng trong đơn vị mở rộng Synology DX517 và hỗ trợ chuyển mã video 4K / 1080p thời gian thực, DS718 + lý tưởng cho việc tập trung sao lưu dữ liệu và nội dung siêu đa phương tiện đa phương tiện.

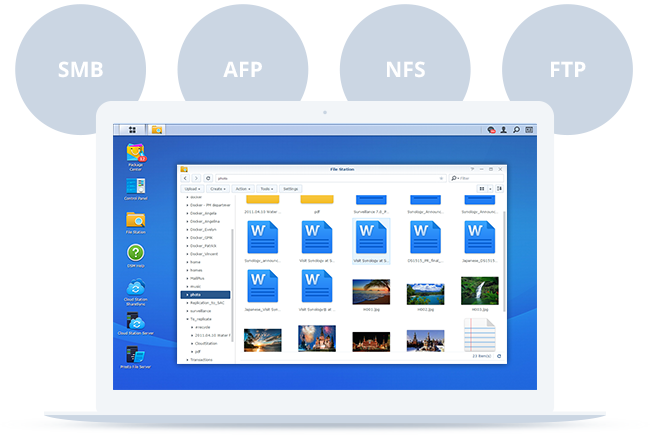

File Station công cụ quản lý và chia sẻ tập tin

- File Station là một công cụ quản lý web nhanh và an toàn được thiết kế để dễ dàng sử dụng và không cần cấu hình phức tạp trên máy Mac hay PC.

- Các công cụ tìm kiếm và lọc nâng cao giúp dễ dàng tổ chức và chia sẻ các tập tin với một liên kết duy nhất. Hỗ trợ SMB, FTP, AFP, NFS, WebDAV, tương thích với mọi hệ điều hành.

Đồng bộ hóa tệp của bạn trên tất cả thiết bị của bạn

 Cloud Station Suite cung cấp cho bạn đồng bộ hoá dữ liệu thời gian thực trên tất cả các thiết bị NAS của Synology và các thiết bị khác. "Phiên bản thông minh" cho phép bạn giữ các phiên bản của các tệp tin quan trọng nhất để sử dụng không gian lưu trữ tốt hơn.

Máy chủ Truyền thông 4K

- Ổ cứng NAS Synology DiskStation DS718+ có thể là 1 máy chủ lưu trư Video 4K chất lượng cao để truy cập và phát nội dung video 4K của bạn mọi lúc mọi nơi.

- DS718 + hỗ trợ 4K trực tuyến chuyển mã H.264 / Trạm video H.265 và DS qua video, cho phép chuyển đổi và phát lại video 4K một cách nhanh chóng trên các máy tính khác, điện thoại thông minh và máy nghe nhạc phương tiện truyền thông không dùng hỗ trợ các định dạng Ultra HD ban đầu.



Thông số kỹ thuật

CPU
CPU Model Intel Celeron J3455
CPU Architecture 64-bit
CPU Frequency Quad Core 1.5 burst up to 2.3 GHz
Hardware Encryption Engine (AES-NI)  v
Hardware Transcoding Engine H.264 (AVC), H.265 (HEVC), MPEG-2 and VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30
Memory
System Memory 2 GB DDR3L
Memory Module Pre-installed 2GB (1 x 2GB)
Total Memory Slots 2
Memory Expandable up to 6 GB (2 GB + 4 GB)
Storage
Drive Bays 2
Maximum Drive Bays with Expansion Unit 7
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 24 TB (12 TB drive x 2) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 84 TB (24 TB + 12 TB drive x 5) (Capacity may vary by RAID types)
Maximum Single Volume Size 108 TB
Hot Swappable Drive
Notes
  • "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum single volume size is not directly related to the maximum raw capacity. (Learn more)
  • Expansion of the internal volume is only supported if the combined single volume size does not exceed the maximum limit of 108TB.
External Ports
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.0 Port 3
eSATA Port 1
Copy Button  v
File System
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Notes exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 157 mm x 103.5 mm x 232 mm
Weight 1.74 kg
Others
System Fan 92 mm x 92 mm x 1 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness adjustable front LED indicators  v
Power Recovery  v
Noise Level* 18.4 dB(A)
Scheduled Power On/Off  v
Wake on LAN/WAN  v
Power Supply Unit / Adapter 65W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 20.1 W (Access)
9.1 W (HDD Hibernation)
British Thermal Unit 68.58 BTU/hr (Access)
31.05 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI
Warranty 3 Years
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number 512
Maximum iSCSI Target Number 32
Maximum iSCSI LUN 256
iSCSI LUN Clone/Snapshot, Windows ODX  v
SSD Read/Write Cache (White Paper)  v
SSD TRIM  v
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5 (with Expansion Unit)
  • RAID 6 (with Expansion Unit)
  • RAID 10 (with Expansion Unit)
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5 (with Expansion Unit)
  • RAID 1 to RAID 5 (with Expansion Unit)
  • RAID 5 to RAID 6 (with Expansion Unit)
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5 (with Expansion Unit)
  • RAID 6 (with Expansion Unit)
Volume Expansion by Adding a HDD
  • Synology Hybrid RAID
  • RAID 5 (with Expansion Unit)
  • RAID 6 (with Expansion Unit)
  • JBOD (with Expansion Unit)
Global Hot Spare Supported RAID Type
  • Synology Hybrid RAID
  • RAID 1 (with Expansion Unit)
  • RAID 5 (with Expansion Unit)
  • RAID 6 (with Expansion Unit)
  • RAID 10 (with Expansion Unit)
File Sharing Capacity
Maximum Local User Accounts 2048
Maximum Local Groups 256
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 8
Maximum Concurrent CIFS/AFP/FTP Connections 500
Windows Access Control List (ACL) Integration  v
NFS Kerberos Authentication  v
High Availability Manager  v
Log Center  v
Syslog Events per Second 800
Virtualization
VMware vSphere 6 with VAAI  v
Windows Server 2012  v
Windows Server 2012 R2  v
Citrix Ready  v
OpenStack  v
Add-on Packages (learn more about the complete add-on package list)
Antivirus by McAfee (Trial)  v
Central Management System  v
Chat  v
Maximum Users 1500
Notes
  • The number of concurrent HTTP connections for Chat was configured to the maximum.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
Cloud Station Server  v
Maximum Number of Concurrently Connected Devices 500
Maximum Number of Concurrently Connected Devices (with RAM expansion) 1500
Maximum Number of Synced Files (btrfs) 1,000,000 / single file reaction time 862 ms
Maximum Number of Synced Files (ext4) 1,000,000 / single file reaction time 351 ms
Notes
  • The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. For more information on file processing capability, please refer to the reaction time for file processing.
  • File reaction time refers to the preparation time required for other devices to start downloading a 10KByte file from a Synology NAS after the file has been added to the NAS. RAM expansion was not used during testing.
  • Non-encrypted shared folders were used during the aforementioned testing.
Document Viewer  v
Download Station  v
Maximum Concurrent Download Tasks 80
Drive  v
Maximum Number of Synced Files 500,000 / single file reaction time 362 ms
Maximum Number of Concurrent Connections for PC Clients 450
Notes
  • The Btrfs file system was used for the purpose of testing.
  • The maximum number of concurrent connections refers to the maximum number of connections that could be maintained when the maximum number of synced files was reached.
  • File reaction time refers to the preparation time required for other devices to start downloading a 10KByte file from a Synology NAS after the file has been added to the NAS.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Non-encrypted shared folders were used during the aforementioned testing.
exFAT Access (optional)  v
MailPlus / MailPlus Server  v
Free Email Accounts (Licenses required for additional accounts)
Recommended MailPlus Client Number Up to 90 (Btrfs) / 90 (ext4)
Maximum Server Performance 831,000 (Btrfs) / 966,000 (ext4) emails per day, approx. 25.4 GB (Btrfs) / 29.5 GB (ext4)
Notes
  • The CPU and RAM usages were both under 80% when testing recommended client numbers.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs units installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server  v
DLNA Compliance  v
Moments  v
Facial recognition  v
Subject recognition  v
Office  v
Maximum Users 1800
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Snapshot Replication  v
Maximum Snapshots per Shared Folder 1024
Maximum Snapshots of all Shared Folder 65536
Surveillance Station
Maximum IP cam (Licenses required) 40 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 1200 FPS @ 720p (1280x720)
800 FPS @ 1080p (1920×1080)
350 FPS @ 3M (2048x1536)
280 FPS @ 5M (2591x1944)
170 FPS @ 4K (3840x2160)
Total FPS (H.265)* 1200 FPS @ 720p (1280x720)
1200 FPS @ 1080p (1920×1080)
600 FPS @ 3M (2048x1536)
480 FPS @ 5M (2591x1944)
200 FPS @ 4K (3840x2160)
Total FPS (MJPEG)* 450 FPS @ 720p (1280x720)
250 FPS @ 1080p (1920×1080)
200 FPS @ 3M (2048x1536)
100 FPS @ 5M (2591x1944)
Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station
Video Transcoding 4K Group 1 (See more)
Maximum Transcoding Channel Number 2 channel, 30 FPS @ 4K (4096 x 2160), H.264 (AVC)/H.265 (HEVC) or
2 channel, 30 FPS @ 1080p (1920×1080), H.264 (AVC)/H.265 (HEVC)/MPEG-2/VC-1
Virtual Machine Manager  v
Maximum Virtual DSM Number (Licenses required) 2 (including 1 Free License) (Learn more)
Notes Virtual Machine Manager is not supported on hosts running Synology High Availability.
VPN Server  v
Maximum Connections 20
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  • Surveillance Device License Pack
  • D3NS1866L-4G DDR3 non-ECC SO-DIMM
  • Expansion Unit: DX517 X 1
  • VS360HD
  • VS960HD
