DS418

Trang chủ »Ổ cứng mạng Synology Diskstation DS418
Ổ cứng mạng Synology Diskstation DS418 http://thietbiluutru.com.vn

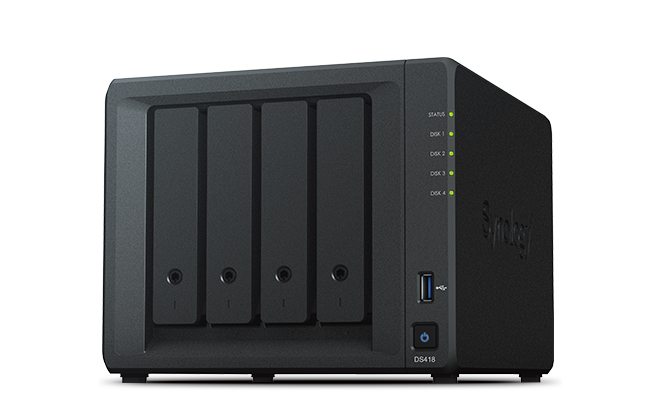

Ổ cứng mạng Synology Diskstation DS418



Model:DS418
Tình trạng: Đặt hàng nhanh: 0983 280 482 (Ms.Nguyệt)

Chưa có nhận xét từ khách hàng  |  Gửi nhận xét

11.990.000
- Cpu : Realtek RTD1296 Quadruple cœur 1.4 GHz 64-bit
- Ram : 2 GB DDR4
- Dung lượng hỗ trợ tối đa :48 TB (12 TB ổ x 4) (Dung lượng có thể khác nhau tùy thuộc vào loại RAID)
- Cổng kết nối : x2 LAN RJ-45 1GbE ,x2 cổng USB 3.0
- Quản lý lưu trữ dung lượng lớn và chuyển mã video 10-bit 4K H.265 10-bit trực tiếp

Bảo hành: 24 tháng



SP cùng mức giá

Ổ cứng mạng Synology Diskstation DS418

Thông tin chi tiêt :

Máy chủ NAS phục vụ lưu trữ tệp tập trung và chuyển mã video 4K H.265 thời gian thực.

 Ổ cứng Nas Synology DS418 đi kèm với bộ xử lý 4 nhân 64-bit mới, cung cấp tốc độ truyền dữ liệu tuyệt vời, quản lý lưu trữ dung lượng lớn và chuyển mã video 10-bit 4K H.265 10-bit trực tiếp.



Đồng bộ hóa tệp của bạn trên tất cả thiết bị của bạn

 Cloud Station Suite cung cấp cho bạn đồng bộ hoá dữ liệu thời gian thực trên tất cả các thiết bị NAS của Synology và các thiết bị khác. "Phiên bản thông minh" cho phép bạn giữ các phiên bản của các tệp tin quan trọng nhất để sử dụng không gian lưu trữ tốt hơn.

Hợp tác trong thời gian thực trên đám mây riêng của bạn

 Office là một gói hợp tác kết hợp sự tiện lợi và khả năng sử dụng của đám mây công cộng với sự riêng tư và bảo mật dữ liệu đám mây riêng. Nó cho phép bạn làm việc minh bạch trên các tài liệu và bảng tính trong một môi trường được bảo vệ.

Máy chủ Truyền thông 4K

Ổ cứng Nas Synology DS418 như 1 kho lưu trữ video giúp bạn có thể truy cập và thưởng thức Video 4K yêu thích của bạn ở mọi nơi và mọi lúc. DS418 hỗ trợ chuyển mã nội tuyến 10Kbit 4K H.265.

- Với Video Station và video DS, bạn có thể chuyển đổi và phát video 4K từ tất cả các máy tính, thiết bị di động và các máy nghe nhạc khác không hỗ trợ định dạng Ultra HD.



Nas Synology DS418 áp dụng công nghệ RAID Hybrid Synology (SHR)

 Ổ cứng mạng Synology DS418 có thể quản lý lưu trữ là dễ dàng với công nghệ Synology Hybrid RAID (SHR).

 - SHR là một hệ thống quản lý RAID tự động cho phép người dùng dễ dàng tạo và mở rộng dung lượng lưu trữ và di chuyển các loại RAID mà không cần những chi tiết liên quan.

 - Công nghệ SHR này có thể hỗ trợ 1 đến 2 ổ cứng dự phòng để bảo vệ dữ liệu của bạn trong trường hợp ổ cứng bị lỗi.

Hiệu quả về mặt chi phí

SHR tối đa hóa dung lượng dữ liệu của RAID khi sử dụng các kích cỡ RAID khác nhau.

Quản lý dễ dàng

Đối với người dùng mới làm quen không có kiến ​​thức về kỹ thuật nhưng vẫn muốn bảo vệ dữ liệu của mình bằng RAID, trình hướng dẫn cài đặt thuận tiện sẽ hướng dẫn bạn các bước trong quá trình cài đặt lần đầu.

sự mở rộng

Bạn có thể thêm đĩa mới khi đang sử dụng với một cú nhấn chuột duy nhất trong Storage Manager.



Dễ dàng truy cập vào các tập tin với QuickConnect

 Truy cập các tập tin trên NAS Synology của bạn trên Internet mà không gặp khó khăn trong việc thiết lập các quy tắc chuyển tiếp cổng, DDNS hoặc các thiết lập mạng phức tạp khác. QuickConnect cho phép bạn kết nối thông qua một địa chỉ an toàn có thể tùy chỉnh cho phép bạn ngay lập tức truy cập các tập tin đa phương tiện và làm việc trên bất kỳ thiết bị kết nối Internet mà không mất thêm chi phí.





Thông số kỹ thuật

CPU
CPU Model Realtek RTD1296
CPU Architecture 64-bit
CPU Frequency Quad Core 1.4 GHz
Hardware Encryption Engine  v
Hardware Transcoding Engine 10-bit H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60
Memory
System Memory 2 GB DDR4
Storage
Drive Bays 4
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 48 TB (12 TB drive x 4) (Capacity may vary by RAID types)
Maximum Single Volume Size 108 TB
Hot Swappable Drive  v
Notes
  • "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum single volume size is not directly related to the maximum raw capacity. (Learn more)

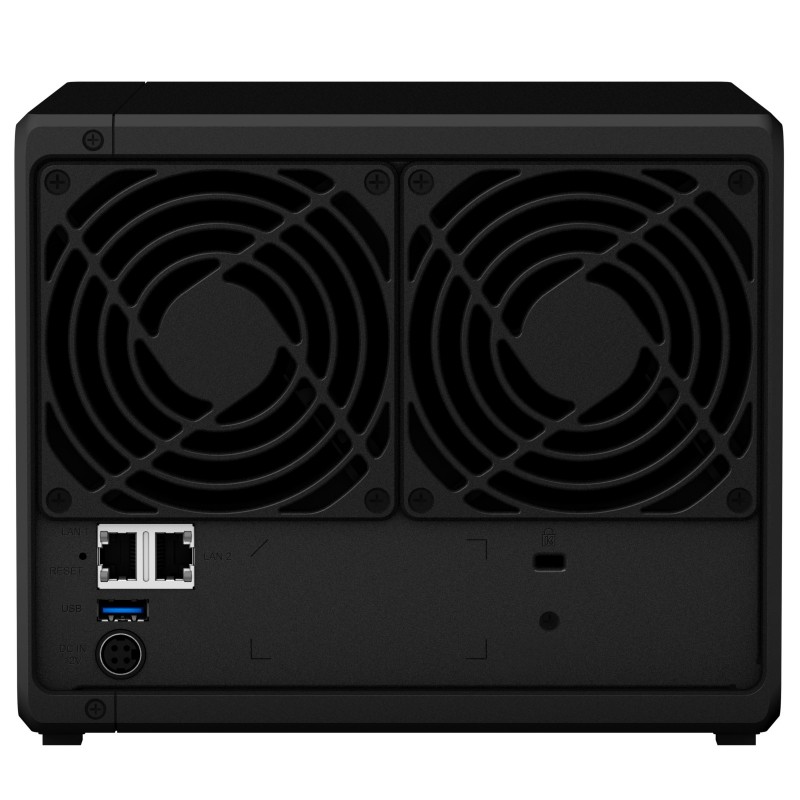

External Ports
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.0 Port 2
File System
Internal Drives EXT4
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Notes exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 166 mm x 199 mm x 223 mm
Weight 2.28 kg
Others
System Fan 92 mm x 92 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness adjustable front LED indicators  v
Power Recovery  v
Noise Level* 20.9 dB(A)
Scheduled Power On/Off  v
Wake on LAN/WAN  v
Power Supply Unit / Adapter 90W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 26.49 W (Access)
8.78 W (HDD Hibernation)
British Thermal Unit 90.39 BTU/hr (Access)
29.96 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • EAC
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI
Warranty 2 Years
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number 256
Maximum iSCSI Target Number 10
Maximum iSCSI LUN 10
SSD TRIM
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
Volume Expansion by Adding a HDD
  • Synology Hybrid RAID
  • RAID 5
  • JBOD
Global Hot Spare Supported RAID Type
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
File Sharing Capacity
Maximum Local User Accounts 2048
Maximum Local Groups 256
Maximum Shared Folder 256
Maximum Shared Folder Sync Tasks 4
Maximum Concurrent CIFS/AFP/FTP Connections 200
Windows Access Control List (ACL) Integration  v
NFS Kerberos Authentication  v
Log Center  v
Syslog Events per Second 100
Add-on Packages (learn more about the complete add-on package list)
Chat
Maximum Users 500
Notes
  • The number of concurrent HTTP connections for Chat was configured to the maximum.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
Cloud Station Server  v
Maximum Number of Concurrently Connected Devices 200
Maximum Number of Synced Files (ext4) 100,000 / single file reaction time 766 ms
Notes
  • The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. For more information on file processing capability, please refer to the reaction time for file processing.
  • File reaction time refers to the preparation time required for other devices to start downloading a 10KByte file from a Synology NAS after the file has been added to the NAS. RAM expansion was not used during testing.
  • Non-encrypted shared folders were used during the aforementioned testing.
Download Station
Maximum Concurrent Download Tasks 30
Drive
Maximum Number of Synced Files 100,000 / single file reaction time 941 ms
Maximum Number of Concurrent Connections for PC Clients 200
Notes
  • The EXT4 file system was used for the purpose of testing.
  • The maximum number of concurrent connections refers to the maximum number of connections that could be maintained when the maximum number of synced files was reached.
  • File reaction time refers to the preparation time required for other devices to start downloading a 10KByte file from a Synology NAS after the file has been added to the NAS.
  • Non-encrypted shared folders were used during the aforementioned testing.
exFAT Access (optional)  v
Media Server  v
DLNA Compliance  v
Moments  v
Facial recognition  v
Subject recognition  v
Office  v
Maximum Users 200
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Surveillance Station
Maximum IP cam (Licenses required) 30 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 900 FPS @ 720p (1280x720)
300 FPS @ 1080p (1920×1080)
240 FPS @ 3M (2048x1536)
150 FPS @ 5M (2591x1944)
110 FPS @ 4K (3840x2160)
Total FPS (H.265)* 900 FPS @ 720p (1280x720)
450 FPS @ 1080p (1920×1080)
360 FPS @ 3M (2048x1536)
250 FPS @ 5M (2591x1944)
180 FPS @ 4K (3840x2160)
Total FPS (MJPEG)* 300 FPS @ 720p (1280x720)
200 FPS @ 1080p (1920×1080)
130 FPS @ 3M (2048x1536)
80 FPS @ 5M (2591x1944)
Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station  v
Video Transcoding 4K Group 3 (See more)
Maximum Transcoding Channel Number 1 channel, 60 FPS @ 4K (4096 x 2160), H.265 (HEVC), 10-bit or
1 channel, 30 FPS @ 1080p (1920 × 1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
VPN Server  v
Maximum Connections 15
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  • Surveillance Device License Pack
  • VS360HD
  • VS960HD
